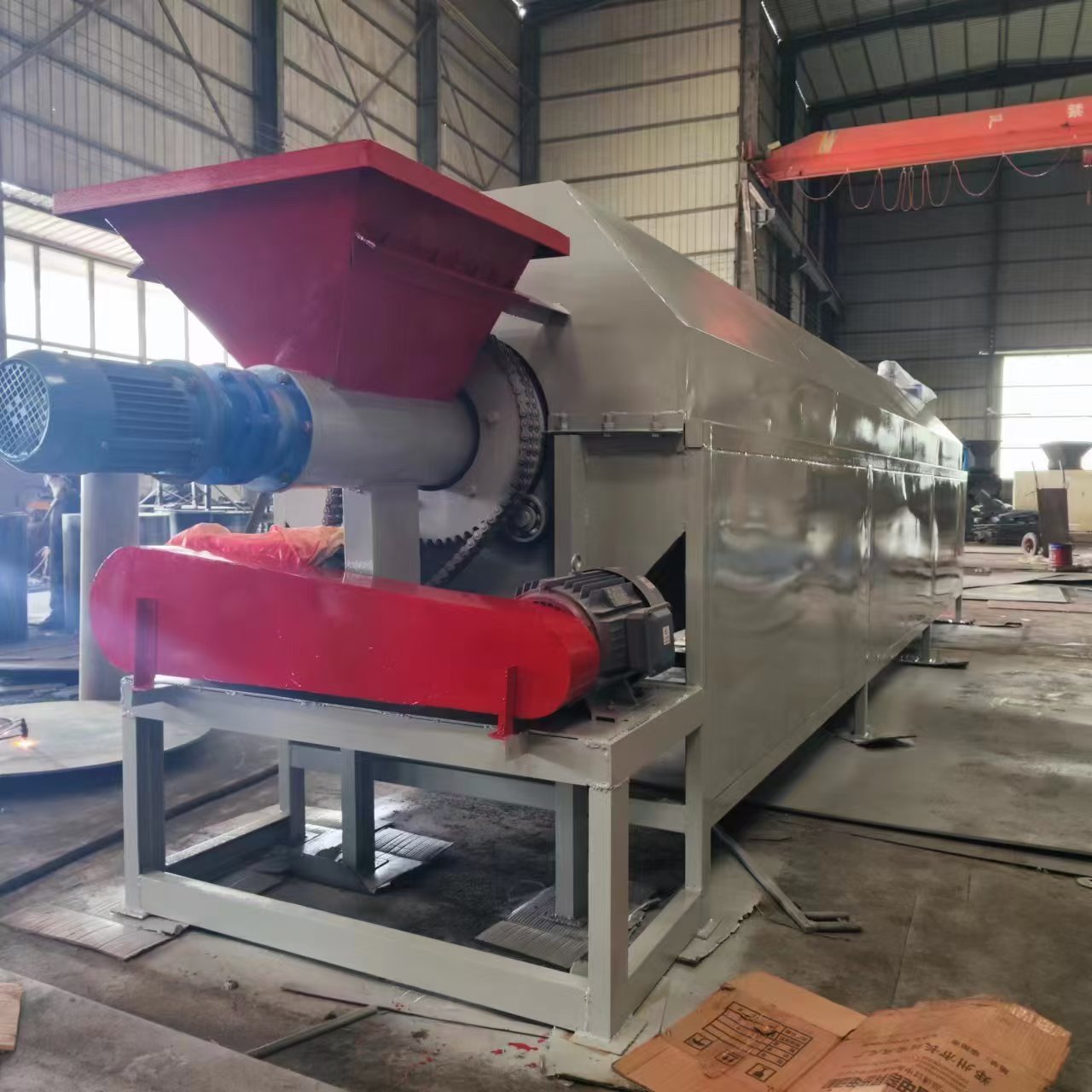

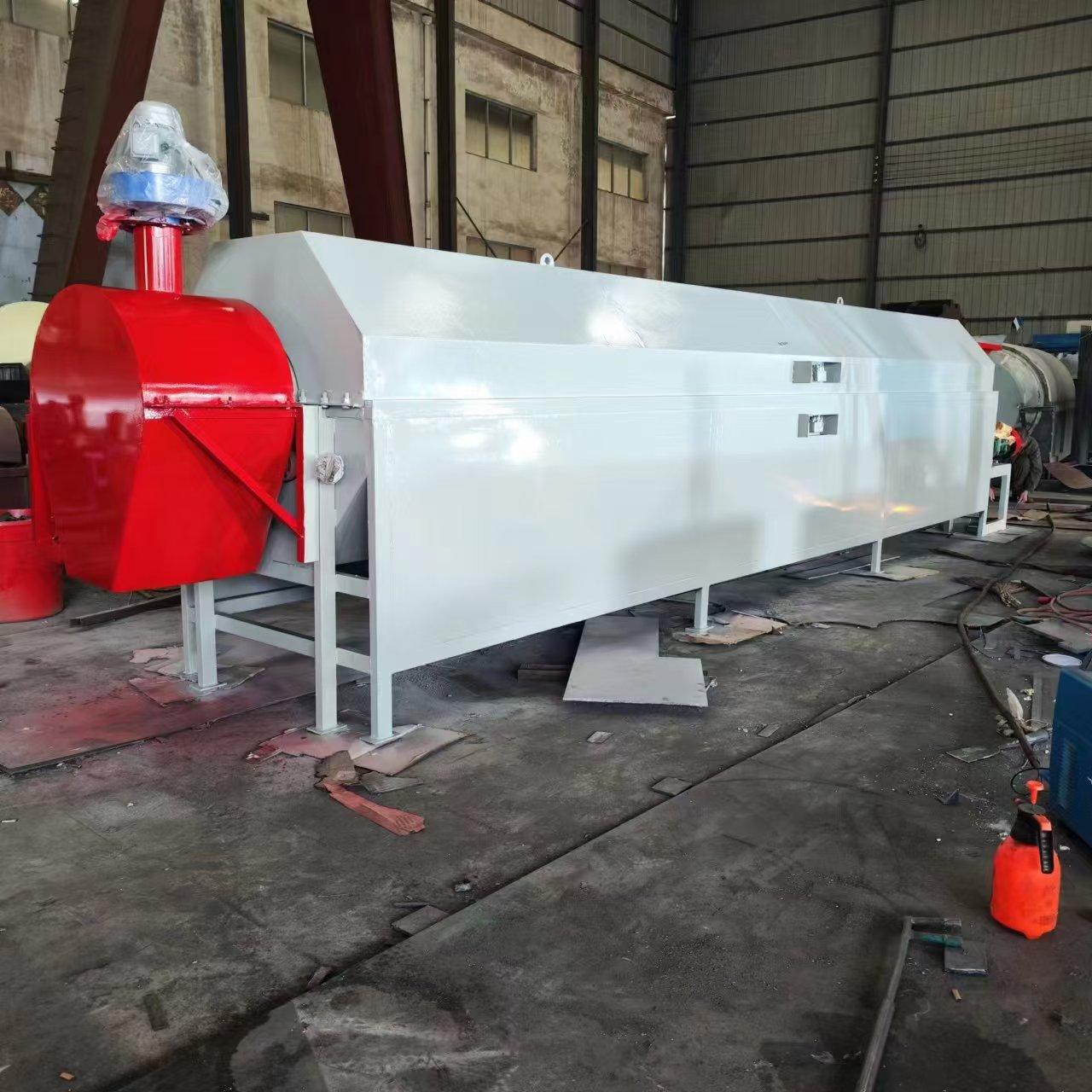

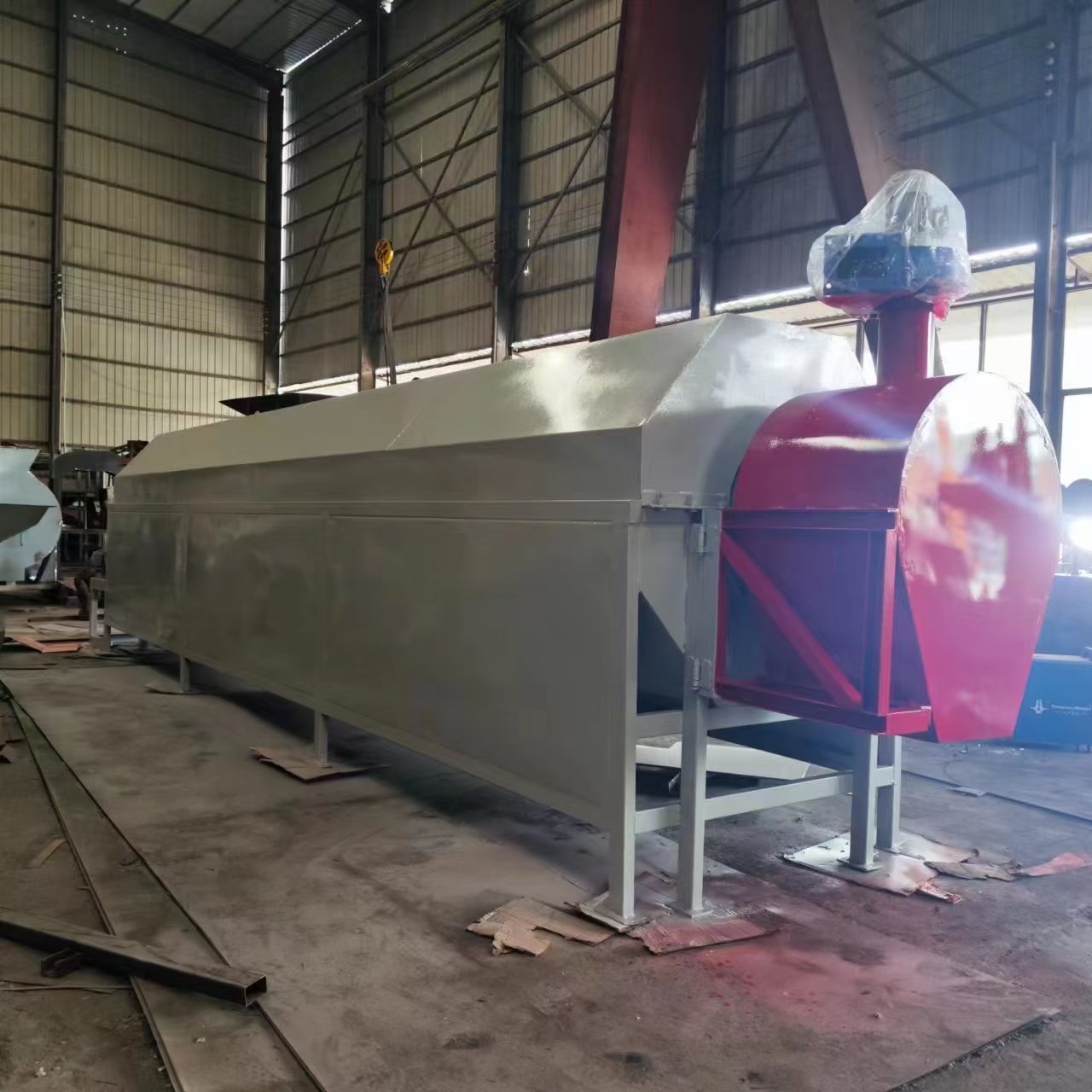

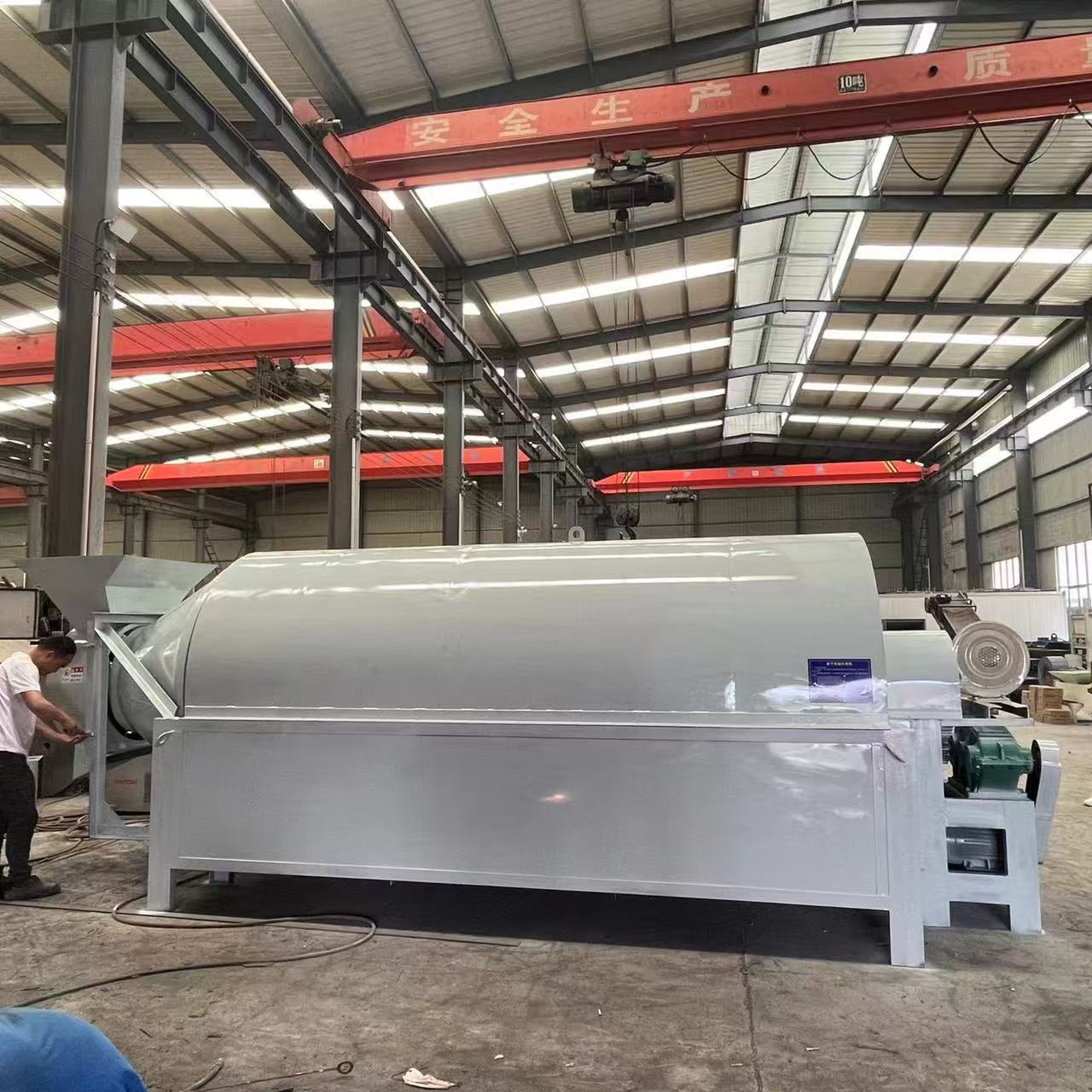

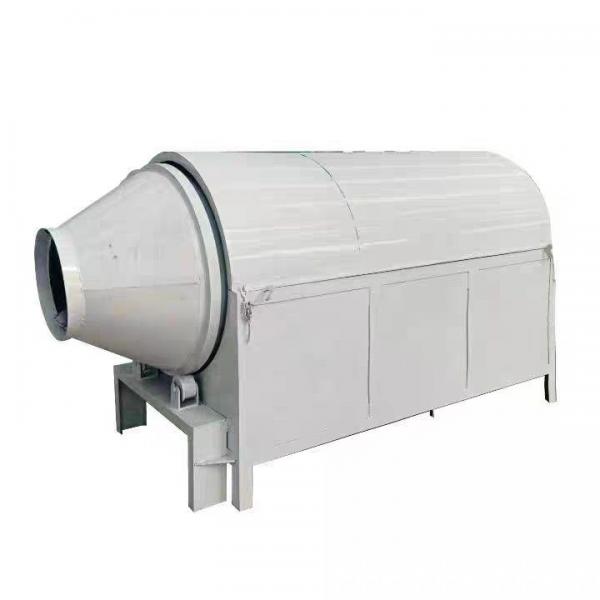

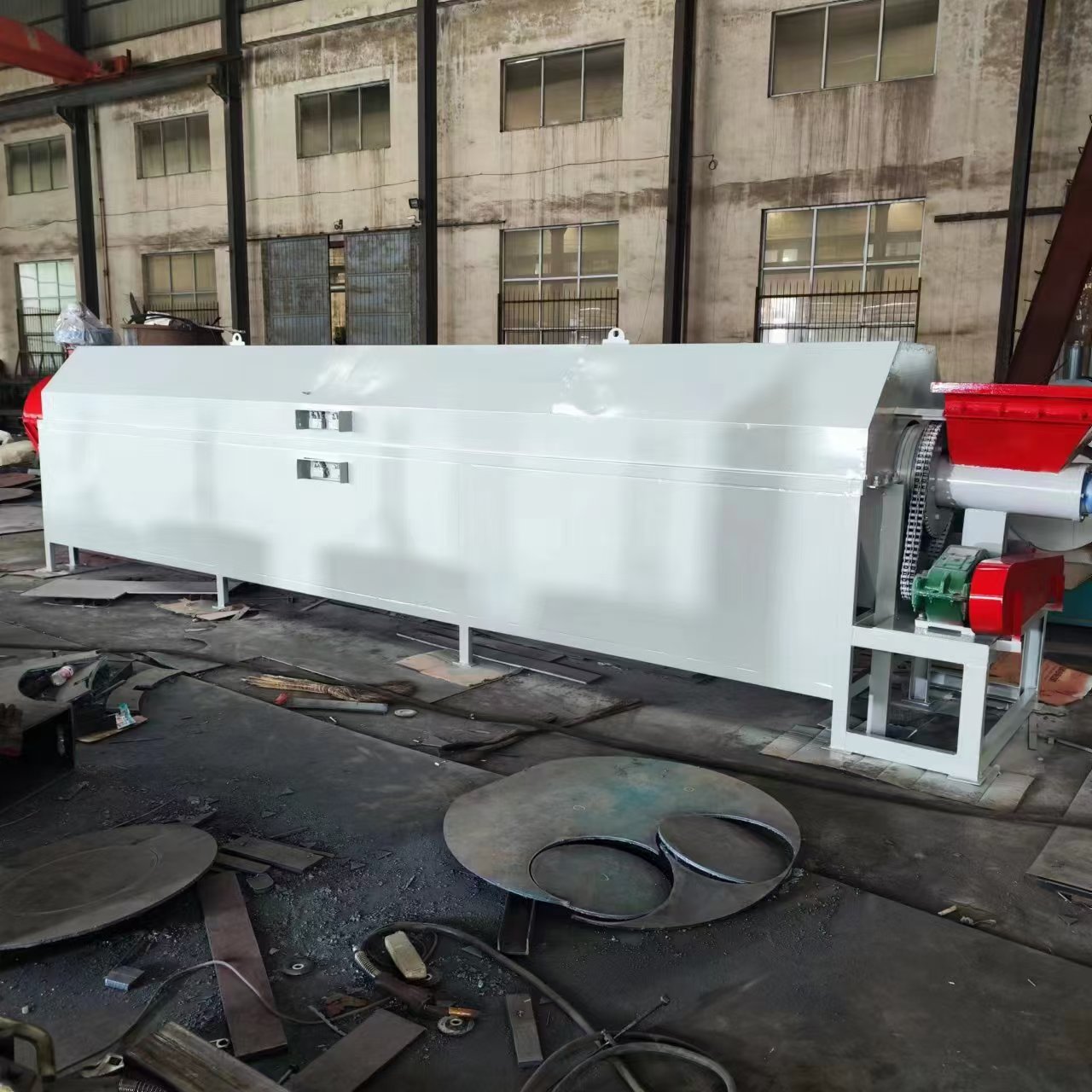

Small Sand Dryer machine Equipment Electric Heating Drum Machine

Params
Model :200type
Power :1.5kw
Capacity:200kg/batch
Weight:
Size:3000*1000*1450mm
Category:Dry machine
Introduction
The basic principle of a drying machine is to heat wet materials with hot air or steam, causing the moisture to evaporate and achieve the purpose of drying Specifically, wet materials are fed into the hopper of t
You can leave a message or send an email to learn more about the product
Parameters
Size : 3000*1000*1450mm
capacity:200kg/batch

Drumsize:800*1800*3mm
Motor:1.5KW
ElectricHeatingPower:30KW
Dehumi-ElectricHeatingPower:370w
chain:12


Products Introduction
The basic principle of a drying machine is to heat wet materials with hot air or steam, causing the moisture to evaporate and achieve the purpose of drying. Specifically, wet materials are fed into the hopper of the dryer through conveying equipment such as belt conveyors or bucket elevators, and then enter the rotating cylinder through the feeding pipeline. The cylinder is slightly inclined and forms a certain angle with the horizontal line. The material is added from the higher end, and the heat carrier (such as hot air) enters from the lower end and comes into counter current contact with the material. As the cylinder rotates, the wet material moves forward inside the cylinder, directly or indirectly receiving heat from the heat carrier, and thus being dried. Finally, the dried material is sent out through a belt conveyor or screw conveyor at the discharge end。



Keywords: Dryer Small Silica
